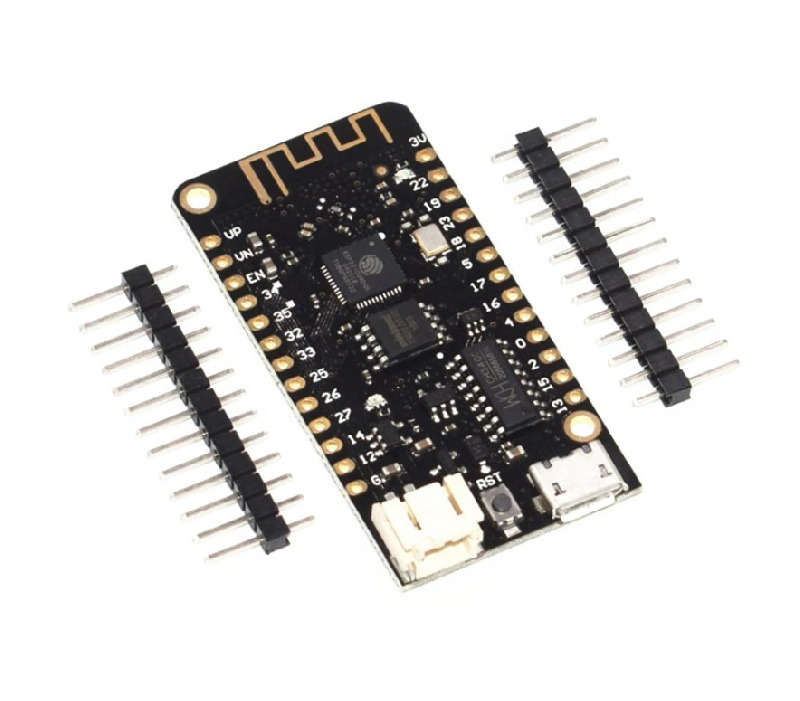

Плата ESP32 WeMos LOLIN32 Lite, интерфейс на CH340G

Плата ESP32 WeMos LOLIN32 Lite , интерфейс на CH340G последней ревизии. Есть разъем для подключения аккумулятора, а также есть встроенный чип зарядки аккумулятора. Может программироваться как в среде Arduino IDE, так и с помощью языка MicroPython.

Характеристики:

• Processors:
  • CPU: Xtensa dual-core (or single-core) 32-bit LX6 microprocessor, operating at 160 or 240 MHz and performing at up to 600 DMIPS
  • Ultra low power (ULP) co-processor
• Memory: 520 KiB SRAM
• Wireless connectivity:
  • Wi-Fi: 802.11 b/g/n
  • Bluetooth: v4.2 BR/EDR and BLE (shares the radio with Wi-Fi)
• Peripheral interfaces:
  • 12-bit SAR ADC up to 18 channels
  • 2 × 8-bit DACs
  • 10 × touch sensors (capacitive sensing GPIOs)
  • 4 × SPI
  • 2 × I²S interfaces
  • 2 × I²C interfaces
  • 3 × UART
  • SD/SDIO/CE-ATA/MMC/eMMC host controller
  • SDIO/SPI slave controller
  • Ethernet MAC interface with dedicated DMA and IEEE 1588 Precision Time Protocol support
  • CAN bus 2.0
  • Infrared remote controller (TX/RX, up to 8 channels)
  • Motor PWM
  • LED PWM (up to 16 channels)
  • Hall effect sensor
  • Ultra low power analog pre-amplifier
• Security:
  • IEEE 802.11 standard security features all supported, including WFA, WPA/WPA2 and WAPI
  • Secure boot
  • Flash encryption
  • 1024-bit OTP, up to 768-bit for customers
  • Cryptographic hardware acceleration: AES, SHA-2, RSA, elliptic curve cryptography (ECC), random number generator (RNG)
• Power management:
  • Internal low-dropout regulator
  • Individual power domain for RTC
  • 5μA deep sleep current
  • Wake up from GPIO interrupt, timer, ADC measurements, capacitive touch sensor interrupt
• Battery management
  • Connector for 3.7v battery (like 18650).
