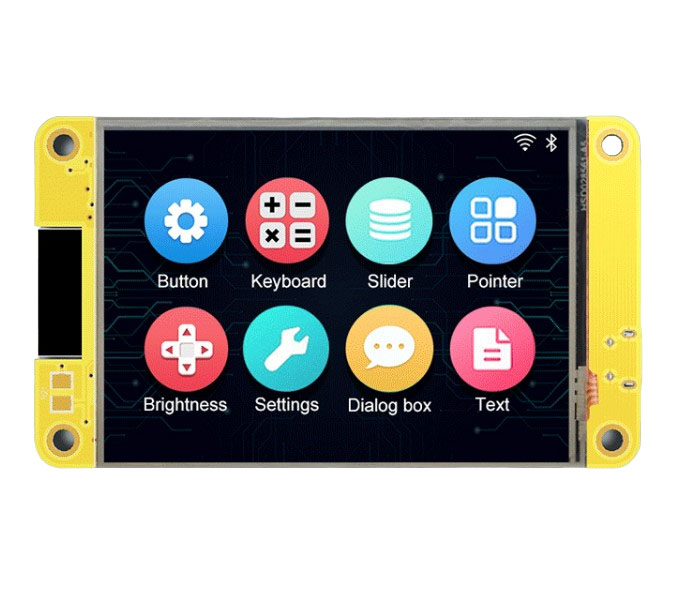

Модуль ESP32-2432S028R с TFT-дисплеем 2,8" 240х320, резистивный сенсор
Артикул: 13602
Плата LVGL ESP32-2432S028R с TFT-дисплеем 2,8" 240х320, Wi-Fi / Bluetooth (ESP-WROOM-32).
Функции
- ESP32
- FLASH: 4 МБ
- PSRAM: НЕТ*
- Слот для карты Micro-SD (SPI)
- 2,8-дюймовый TFT-дисплей 320x240 — ILI9341 (SPI)
- Резистивная сенсорная панель - XPT2046 (SPI)
- 1 RGB-светодиод
- 1 USB-Micro (CH340C)
- Кнопки Load и Reset
- Источник питания: 5 В/1 А
- Разъем P3: GND — GPIO 35 — GPIO 22 — GPIO 21
- Разъем CN1: GND — NC (или GPIO 22 на некоторых платах) — GPIO 27 — V3.3.
- Разъём питания: VIN-TX-RX-GND
Pins
| ESP Pin | GPIO | Description |
|---|---|---|
| 1 | GND | Ground |
| 2 | VCC | +3V3 |
| 3 | EN | RST / TFT_RST (Reset / LCD) |
| 4 | GPIO36 | SENSOR_VP / TP_IRQ (Touchscreen) |
| 5 | GPIO39 | SENSOR_VN / TP_OUT (Touchscreen) |
| 6 | GPIO34 | ADC |
| 7 | GPIO35 | Header P3 Pin 3 |
| 8 | GPIO32 | TP_DIN (Touchscreen) |
| 9 | GPIO33 | TP_CS (Touchscreen) |
| 10 | GPIO25 | TP_CLK (Touchscreen) |
| 11 | GPIO26 | AUDIO IN- |
| 12 | GPIO27 | Header CN1 Pin 2 |
| 13 | GPIO14 | TFT_SCK (TFT) |
| 14 | GPIO12 | TFT_SDO (TFT) |
| 15 | GND | Ground |
| 16 | GPIO13 | TFT_SDI (TFT) |
| 17 | SHD/SD2 | HOLD (SPI Flash / PSRAM*) |
| 18 | SWP/SD3 | WP (SPI Flash / PSRAM*) |
| 19 | SCS/CMD | CS (SPI Flash) |
| 20 | SCK/CLK | SCK (SPI Flash) |
| 21 | SDO/SD0 | SO (SPI Flash / PSRAM*) |
| 22 | SDI/SD1 | SI (SPI Flash / PSRAM*) |
| 23 | GPIO15 | TFT_CS (TFT) |
| 24 | GPIO02 | TFT_RS (TFT) |
| 25 | GPIO0 | BOOT_SW |
| 26 | GPIO04 | LED_RGB |
| 27 | GPIO16 | LED_RGB (PSRAM_CS*) |
| 28 | GPIO17 | LED_RGB (PSRAM_SCK*) |
| 29 | GPIO05 | TF_CS (SD Card) |
| 30 | GPIO18 | TF_CLK (SD Card) |
| 31 | GPIO19 | MCU_MISO (SD Card) |
| 32 | NC | NA |
| 33 | GPIO21 | TFT_BL (TFT) / Header P3 Pin 1 |
| 34 | RXD0 | RXD2 Header P1 Pin 3 |
| 35 | TXD0 | TXD2 Header P1 Pin 2 |
| 36 | GPIO22 | Header P3 Pin 2 (also Header CN1 Pin 3 on some boards) |
| 37 | GPIO23 | MCU_MOSI (SD Card) |
| 38 | GND | Ground |
| 39 | GND | Ground |
