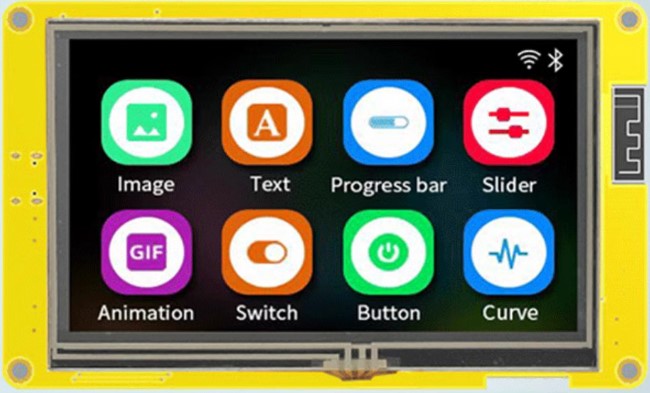

Модуль ESP32-4827S043R с TFT-дисплеем 4.3" 480x272, резестивный сенсор
Артикул: 13965
Плата LVGL ESP32-4827S043R с TFT-дисплеем 4.3" 480x272, Wi-Fi / Bluetooth (ESP32-S3-WROOM-1)
Features
- ESP32-S3 dual-core Xtensa 32-bit LX7 microprocessor, up to 240 MHz with 384KB ROM, 512KB SRAM. 2.4GHz WiFi and Bluetooth 5
- FLASH: 16MB
- PSRAM: 8MB
- Micro-SD card slot (SPI)
- 4.3-inch 480x272 TFT display - ILI9485 (Parallel RGB-565 interface)
- Touch panel options:
- ESP32-4827S043R - Resistive touch panel - XPT2046 (SPI) - not yet supported
- ESP32-4827S043C - Capacitive touch panel - GT911 (i2C - 0x5D or 0x14)
- 1 USB-C to Serial 0 (CH340C)
- I2C / SPI / GPIOs
- Boot and reset buttons
- Dimension: 137.0mm x 84.0mm
- Header P1 (4 pins) (UART): Gnd, Rx, Tx, +5V
- Header P2 (4 pins) (SPI): IO13, IO12, IO11, IO19
- Header P3 (4 pins) (USB/UART): IO20, IO19, IO18, IO17
- Header P4 (4 pins) : IO18, IO17, +3.3v, Gnd
Pins
| Pin | Usage |
|---|---|
| GPIO 0 | BOOT_BTN |
| GPIO 1 | LCD_B4 |
| GPIO 2 | TFT_BL |
| GPIO 3 | LCD_B1 |
| GPIO 4 | LCD_G5 |
| GPIO 5 | LCD_G0 |
| GPIO 6 | LCD_G1 |
| GPIO 7 | LCD_G2 |
| GPIO 8 | LCD_B0 |
| GPIO 9 | LCD_B3 |
| GPIO 10 | SD_CS |
| GPIO 11 | SD_MOSI |
| GPIO 12 | SD_SCK |
| GPIO 13 | SD_MISO |
| GPIO 14 | LCD_R4 |
| GPIO 15 | LCD_G3 |
| GPIO 16 | LCD_G4 |
| GPIO 17 | NC |
| GPIO 18 | CTP_INT* |
| GPIO 19 | CTP_SDA |
| GPIO 20 | CTP_SCL |
| GPIO 21 | LCD_R3 |
| GPIO 33 | NA |
| GPIO 34 | NA |
| GPIO 35 | NC / NA |
| GPIO 36 | NC / NA |
| GPIO 37 | NC / NA |
| GPIO 38 | CTP_RST |
| GPIO 39 | LCD_HSYNC |
| GPIO 40 | LCD_DE |
| GPIO 41 | LCD_VSYNC |
| GPIO 42 | LCD_PCLK |
| GPIO 43 | U0TXD |
| GPIO 44 | U0RXD |
| GPIO 45 | LCD_R0 |
| GPIO 46 | LCD_B2 |
| GPIO 47 | LCD_R2 |
| GPIO 48 | LCD_R1 |
